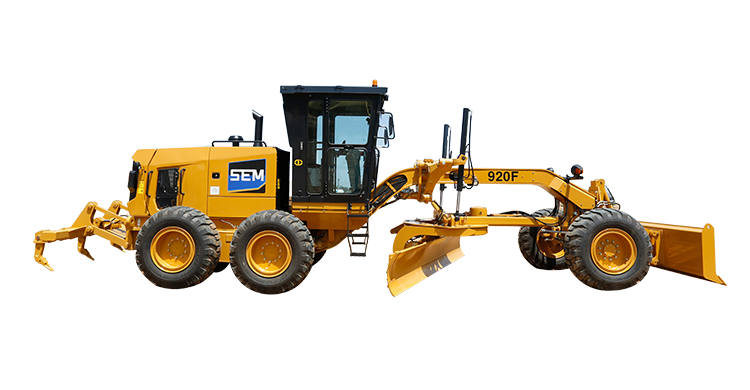

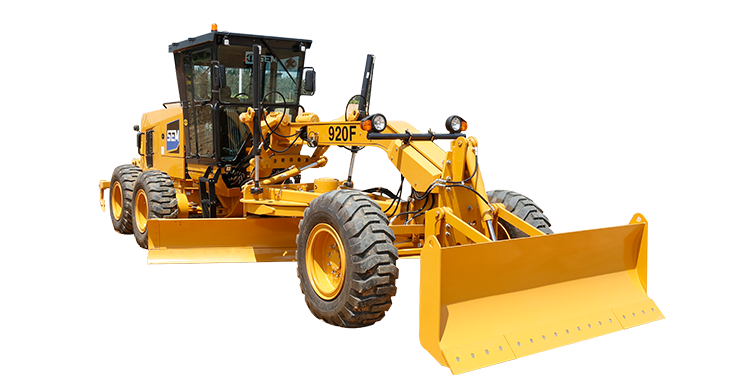

920F

  • Key Specification
  • Advantage
  • Application
    • Standard Weight(Non ROPS high profile plus):15,435kg
    • Standard Weight(with ROPS):15,735kg
    • Overall Dimensions (L*W*H):11,100*2,630*3,140
    • Performance you need
    • Low cost per hour
    • Operate in comfort
    • slope scraping, bulldozing, snow removal, loosening
    • distribution, mixing and land reclamation
  • Feature
  • Specification
  • Product Comparison
  • Photo

The SEM F series Tier 2 Motor Grader is equipped with an SDEC engine and a PPPC load-sensing hydraulic system for consistent and precise blade movement and reduced fuel consumption. The SEM rear tandem axle, designed and manufactured by Caterpillar, leverages the proven Caterpillar tandem axle design to deliver differentiated reliability and a longer service life, resulting in lower owning & operating costs.



In response to customer suggestions and feedback, the new generation F series Motor Grader has been upgraded to better meet the needs of customers and further improve machine performance. This includes the removal of the transmission shaft, direct connection of the hydraulic pump to the gearbox, and a new molded engine hood with a contemporary aesthetic, providing the machine with a striking and impactful visual design.



With these enhancements, SEM's new F series Motor Grader offers improved competitiveness and solutions to support the success of our dealers and customers.

Operate in comfort

  • Standard float function for high efficiency and simple operation.
  • Caterpillar's classic lever control with a short distance and stroke.
  • Adjustable console and seat with optimized ergonomics.
  • Cab with improved airtightness and noise reduction.
  • Added vents in the new dashboard and cab columns for increased comfort.

Low cost per hour

  • Less heat and fuel consumption; load-sensing and PPPC hydraulic system offer increased efficiency.
  • Hydraulic cooling fan, high efficiency in various ambient temperature conditions and enhances cooling effect.
  • Caterpillar (Qingzhou) in-house tandem axle, final drive units with four planetary gears, oil-bath lubrication, and maintenance-free and adjustment-free chain support a higher carrying capability.
  • Dismountable drawbar ball joint for easy replacement and maintenance.
魂牵梦萦
Model 920F
group name
item 15,435kg
Standard Weight(with ROPS) 15,735kg
Overall Dimensions (L*W*H) 11,100*2,630*3,140
Travel Speed (Forward/Reverse) 40/25km/h
Max. Drawbar traction 87kN
Frame Articulation Angle 20°
Min. Turning Radius 7,800mm
Tire 17.5-25 12PR
Engine
Engine Manufacturer SDEC
Engine Model SC7H200.2G2
Net Power 147kW @ 2200RPM
Max. Torque 760N.m @ 1400RPM
Emission Tier 2
Transmission
Brand/Manufacturer Advance/HangChi
Type Converter, Powershift
Forward/Reverse Gears 6 Forward/3 Reverse
Rear Axle/Tandem
Brand/Manufacturer SEM/Caterpillar
Differential No-Spin
Service Brake Air over oil, Disc
Oscillation Front Up 15°
Front Axle
Ground Clearance 630mm
Wheel Lean, left/right ±18°
Max. Oscillation ±16°
SEM_PRODUCTS_920F

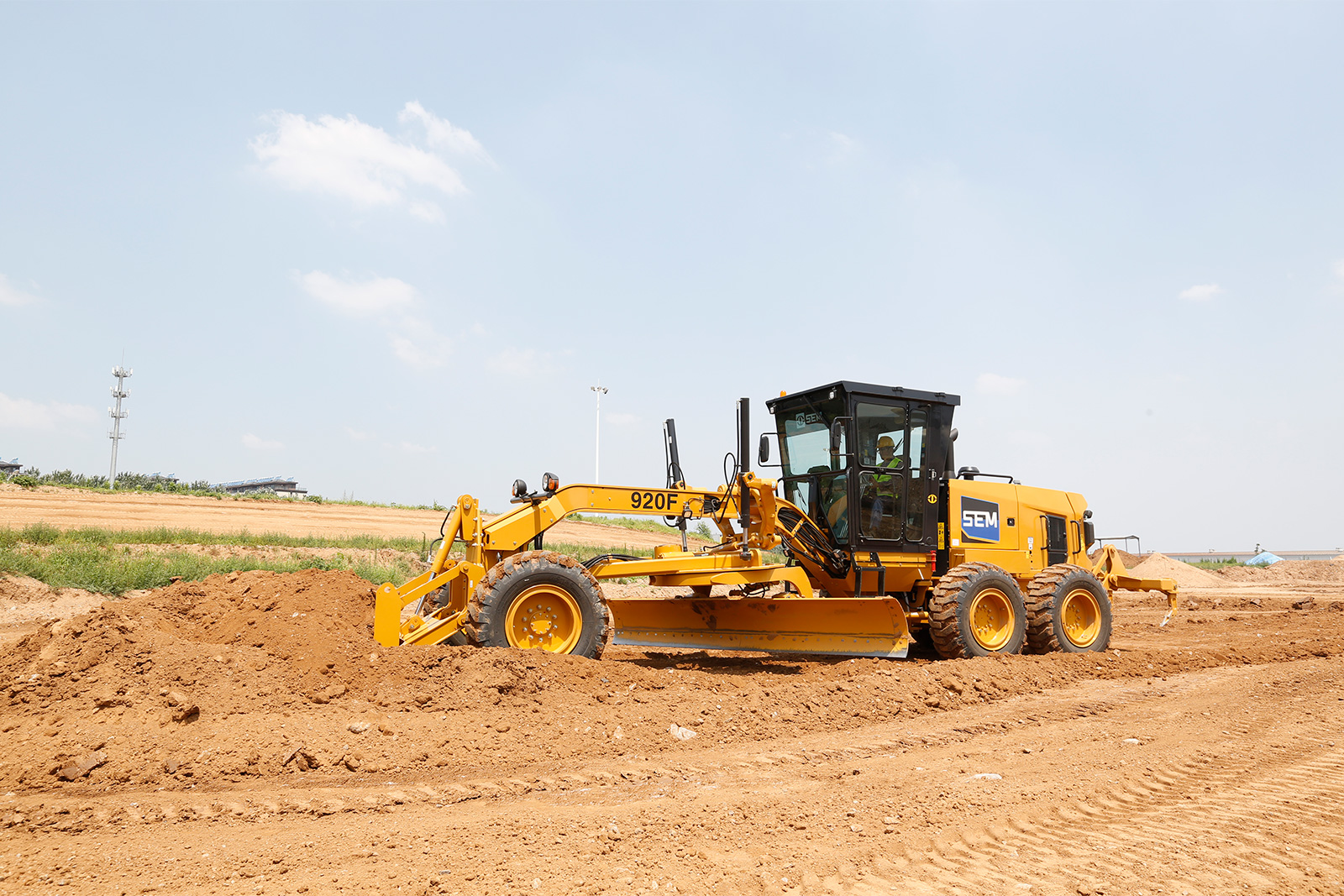

920Fint-img01

SEM_PRODUCTS_920F

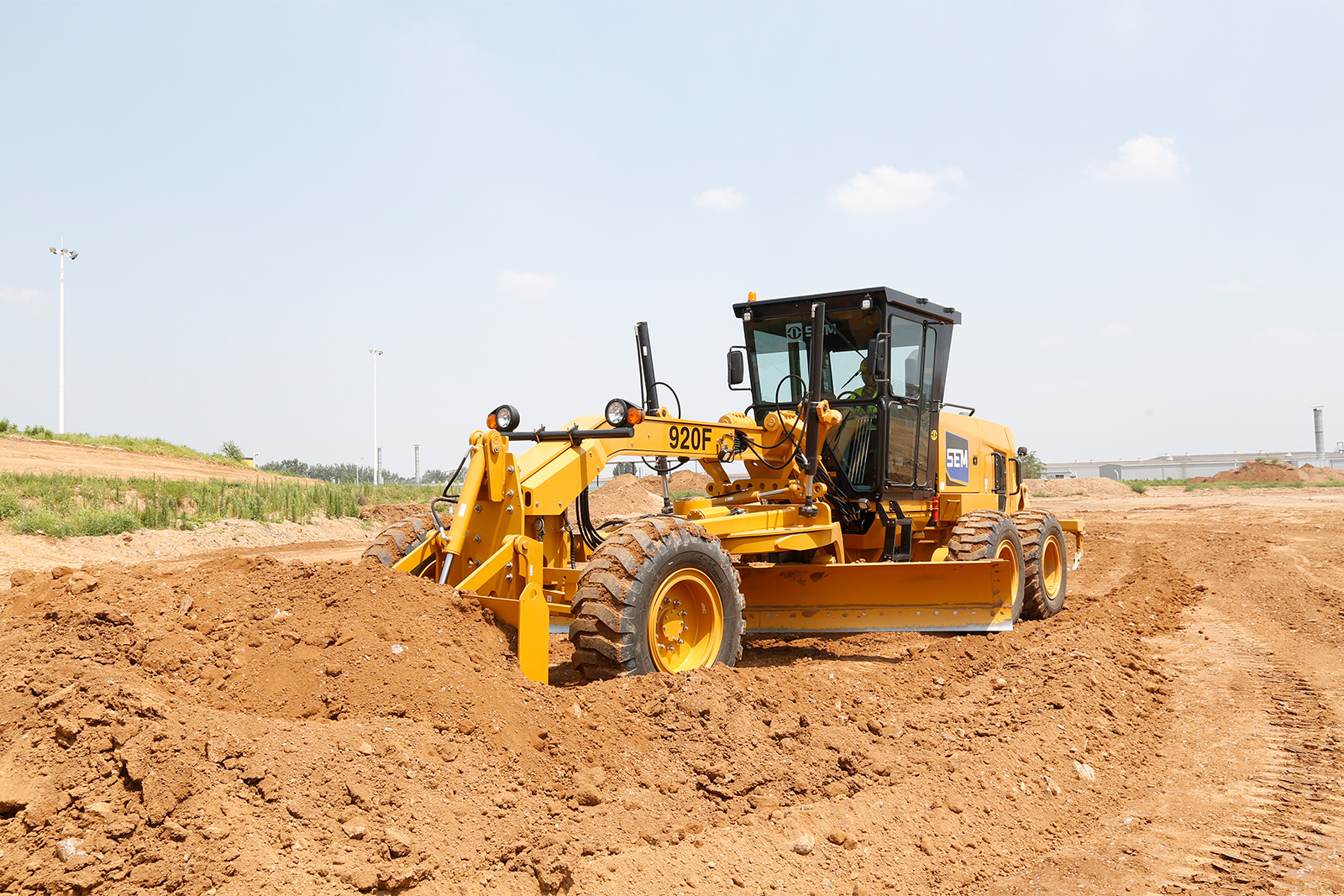

920Fint-img02

SEM_PRODUCTS_920F

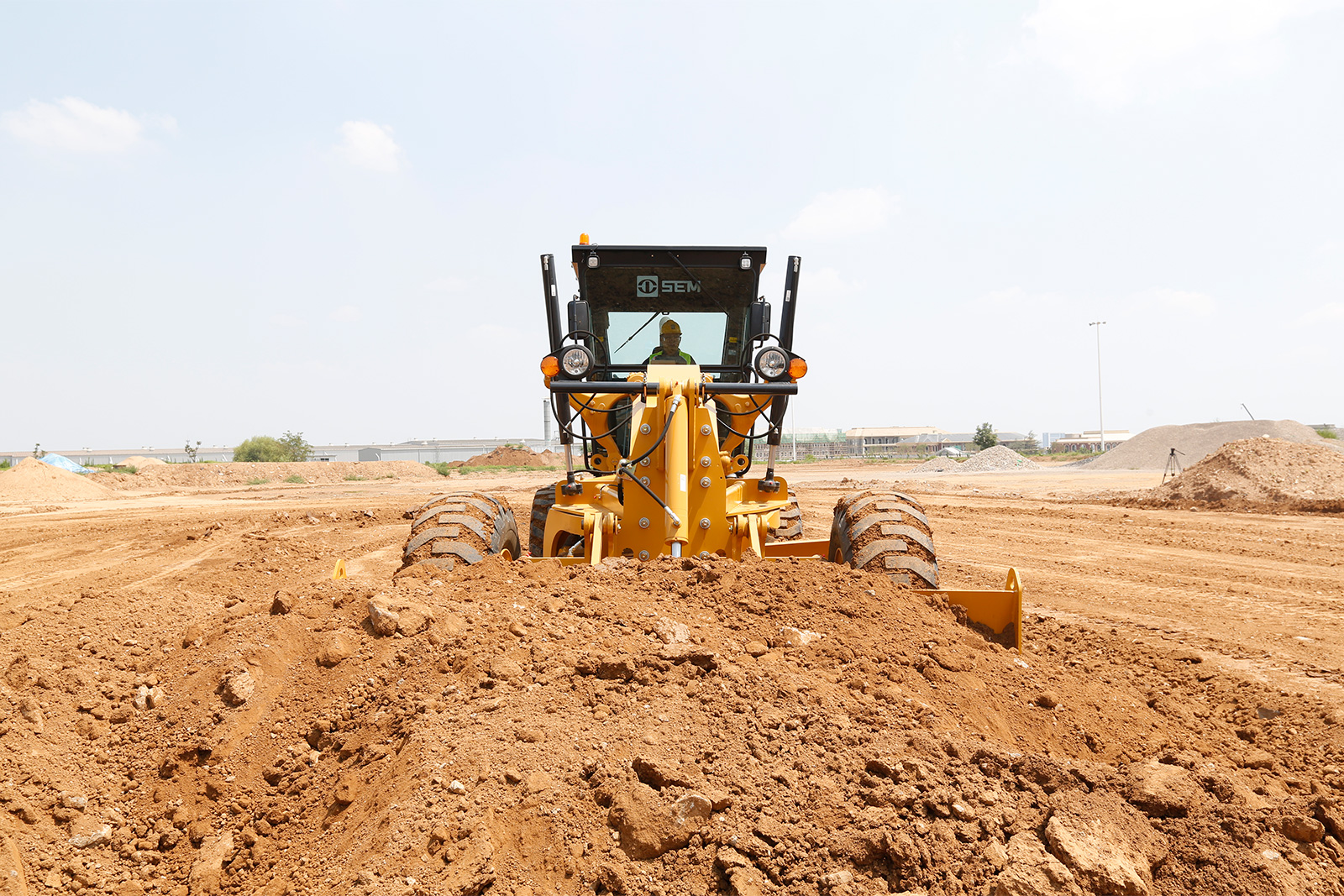

920Fint-img03

SEM_PRODUCTS_920F

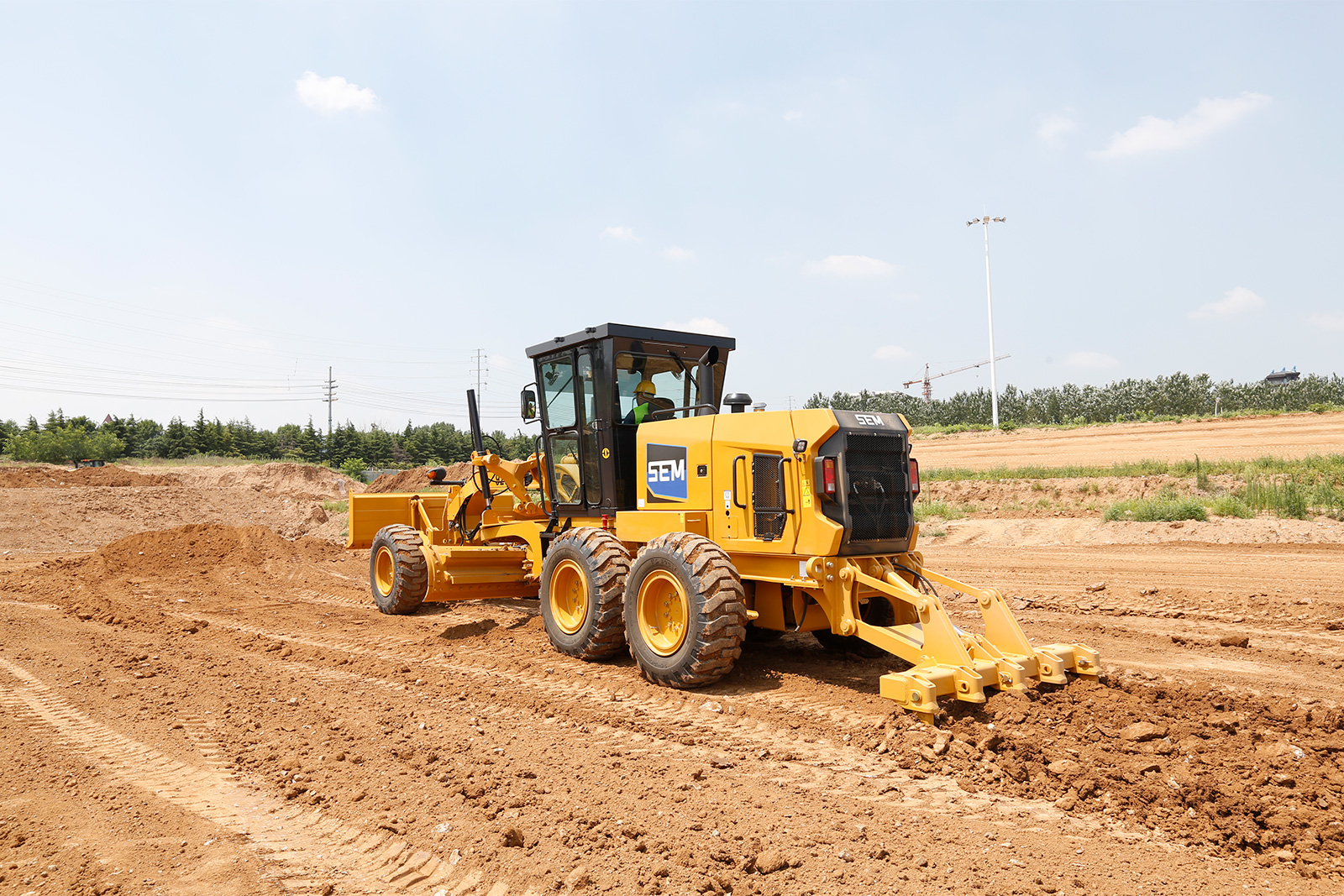

920Fint-img04

SEM_PRODUCTS_920F

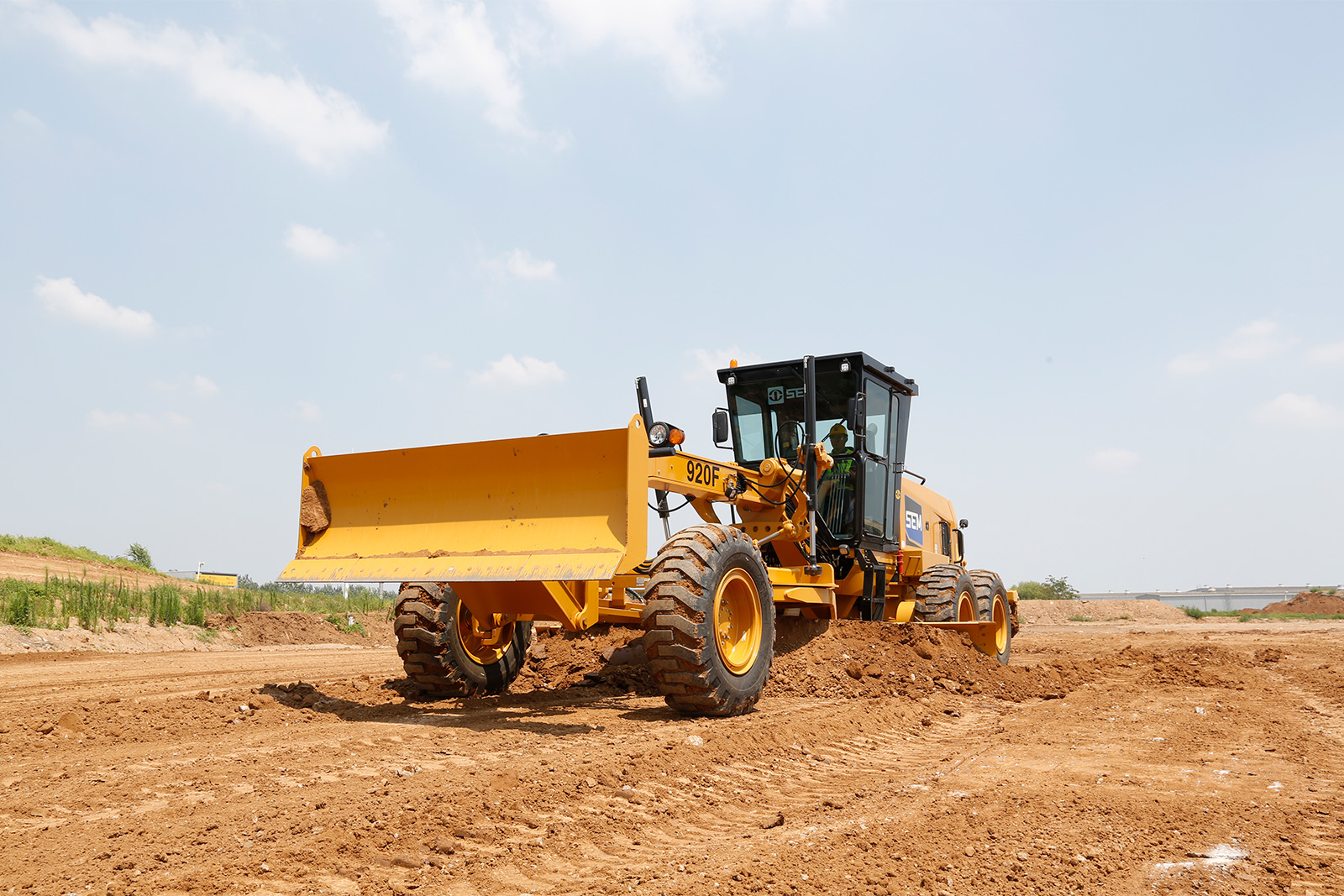

920Fint-img05

SEM_PRODUCTS_920F

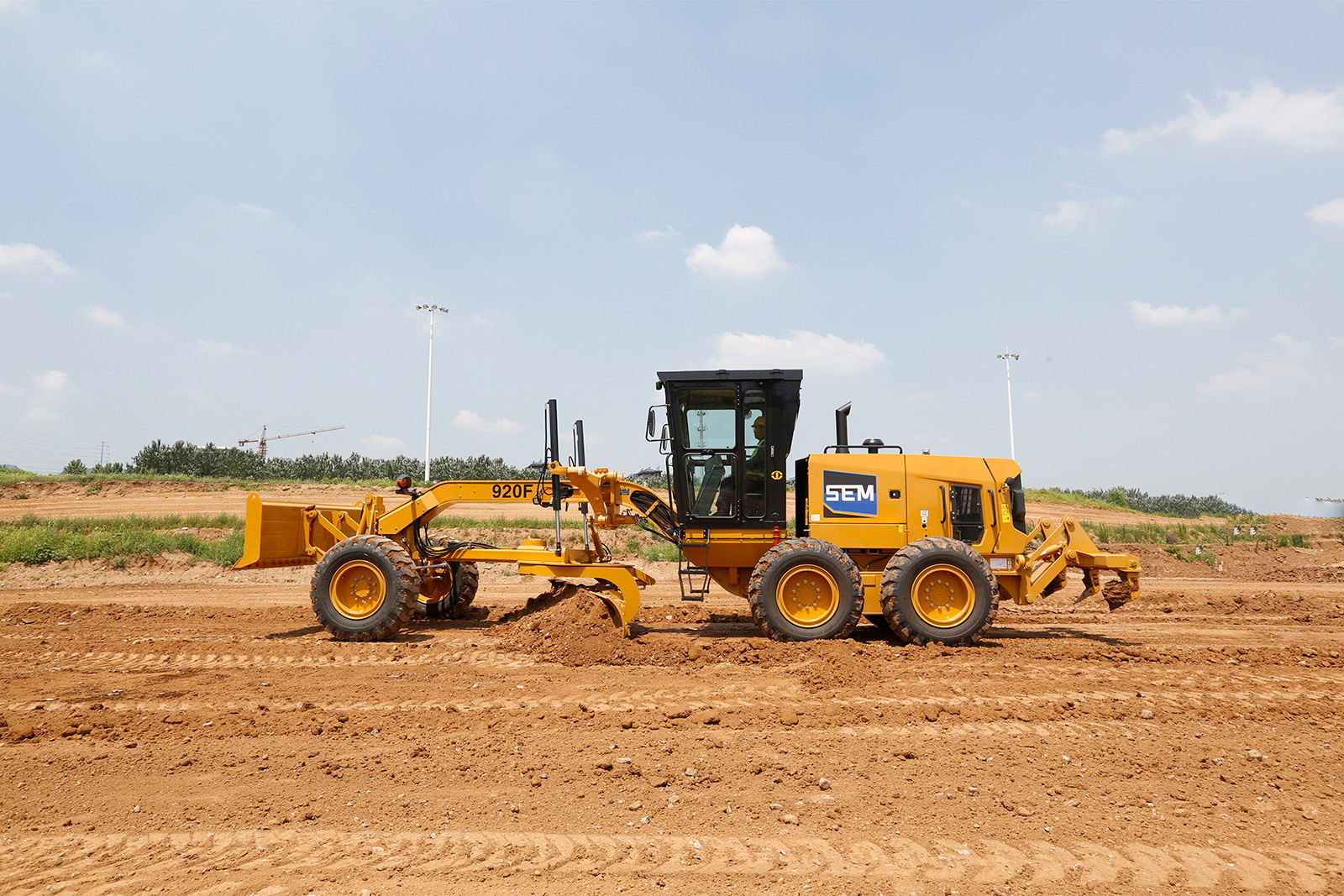

920Fint-img06
